Key Applications of Precision Thin-Section Bearings in Optoelectronic Systems
With the growing use of optoelectronic systems in aerospace, defense, astronomy, and medical imaging, design demands are rising. These systems require compact internal structures, high rotational accuracy, and strong load-bearing performance. Thin-section bearings for optoelectronics meet these needs with their lightweight design, high rigidity, and low friction. Thanks to superior accuracy and compact form, they have become the preferred choice for rotational support in optoelectronic equipment.
1. Why Do Optoelectronic Systems Need Thin-Walled Bearings?
In optoelectronic systems, especially in high-resolution imaging devices or high-speed tracking platforms, the mechanical structure must meet the following requirements:
- Compact structure, space-saving: Precise alignment and repeatability are critical for tasks such as target tracking, antenna positioning, and optical axis adjustment.
- High rotational accuracy and smooth motion: Minimal gaps and high repeatability are required for target tracking, antenna pointing, or optical axis adjustment.
- Stable multi-directional load bearing: Some components must function under high speed or at inclined angles, bearing axial, radial, and moment loads.
- High reliability and low maintenance: These systems often operate in harsh environments, requiring bearings with excellent sealing, corrosion resistance, and long service life.
Thin-section bearings for optoelectronics feature a small cross-sectional area and minimal difference between inner and outer diameters. They offer flexible rotation and high structural strength. These characteristics make them an ideal match for the demanding requirements of optoelectronic systems.
2. Typical Application Scenarios
- Astronomical Telescope Rotational Systems
In large ground-based or space telescopes, thin-section bearings for optoelectronics are used in the rotational section of the telescope mount. They ensure the equipment can perform azimuth and elevation adjustments with minimal error. Their high rigidity helps maintain exceptional pointing accuracy and repeatability, even during minute movements.
- Radar and Electro-Optical Tracking Systems

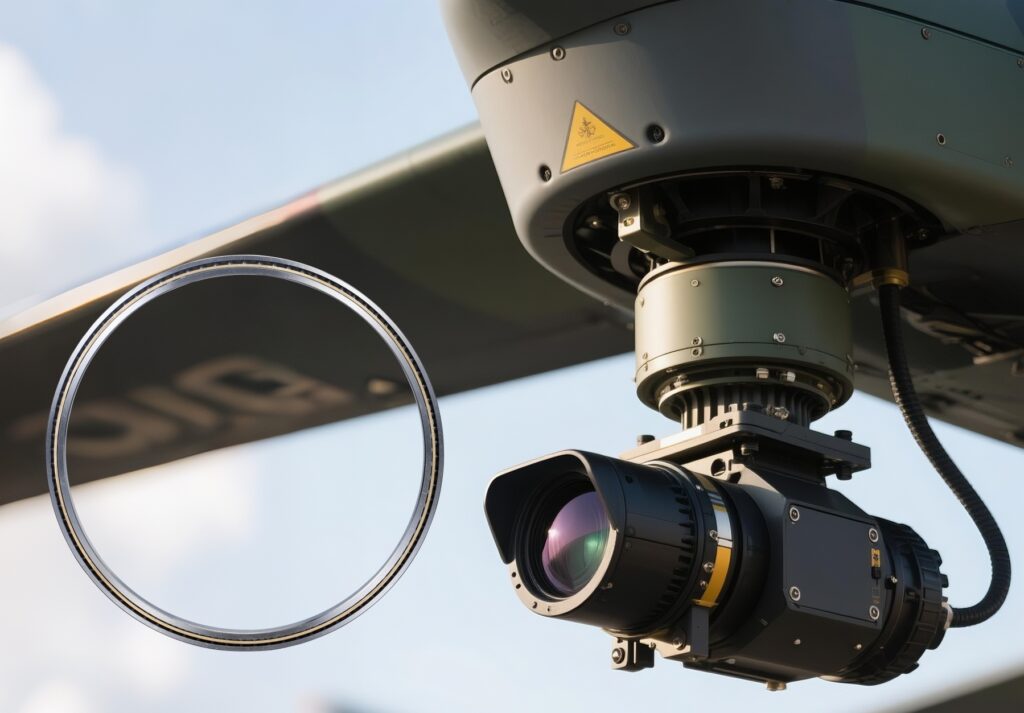

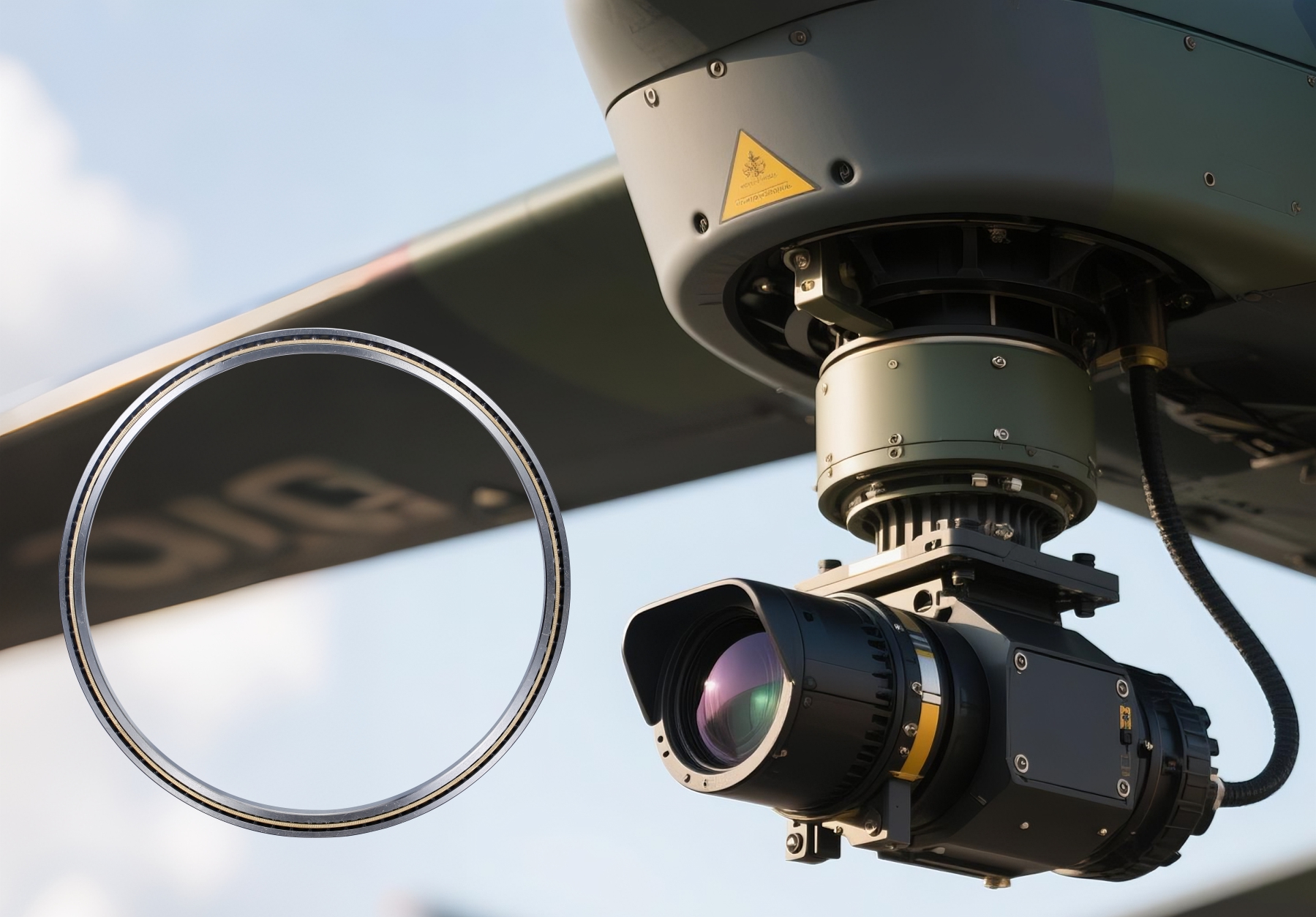

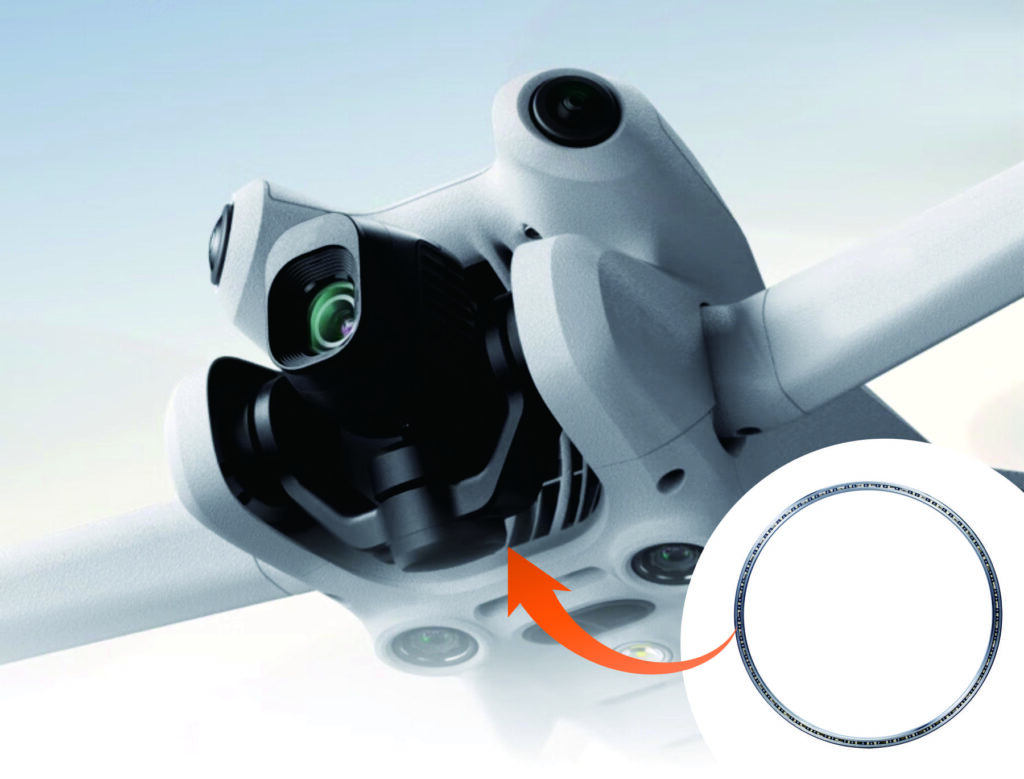

Thin-section bearings are commonly used in the rotational support units of antenna turntables or electro-optical pods. These platforms require rapid response to commands and multi-axis coordinated movements. Thin-section bearings ensure accurate rotation while offering strong resistance to vibration and shock.
- Space Payload Platforms
In satellite systems involving optical imaging, laser ranging, or infrared detection, thin-section bearings for optoelectronics serve as the core rotational support. They maintain stable performance in extreme environments such as vacuum and high or low temperatures—ensuring the high reliability of spaceborne payloads.
3. Key Considerations for Bearing Selection
When selecting thin-section bearings for optoelectronic applications, carefully consider the following factors:
- Size and installation method: Choose appropriate inner and outer diameters and cross-section shapes (e.g., open, sealed, or flanged) based on space constraints.
- Accuracy grade: Generally, bearings must achieve P4 or even P2 grades to ensure the optical system's pointing and positioning accuracy.
- Load capacity and preloading design: Based on the application scenario, perform load calculations and apply suitable preload to avoid gap fluctuations or insufficient rigidity during operation.
- Lubrication and sealing: Some systems require special lubrication, such as vacuum lubrication or temperature-resistant seals, to adapt to harsh operational environments.
Thin-section bearings for optoelectronics are gradually becoming indispensable core components in modern systems. Their outstanding structure, performance, and reliability make them widely used in rotational support for optical precision equipment. As intelligent manufacturing and advanced optoelectronic devices continue to evolve, the demand for smaller, integrated, and customized bearing solutions will keep growing.
If you are developing or optimizing an optoelectronic rotating platform, contact info@hgtbearing.com. We will provide professional selection advice and customized solutions.
