Precision Deep Groove Ball Bearings | Metric, Inch & Flanged Series

Our precision deep groove ball bearings are available in metric, inch, and flanged outer ring designs, with P5, P4, and P2 precision grades. They are ideal for high-speed, low-noise, and space-saving applications requiring stable radial performance and reliable service life.

Email: info@hgtbearing.com

Description
Specification

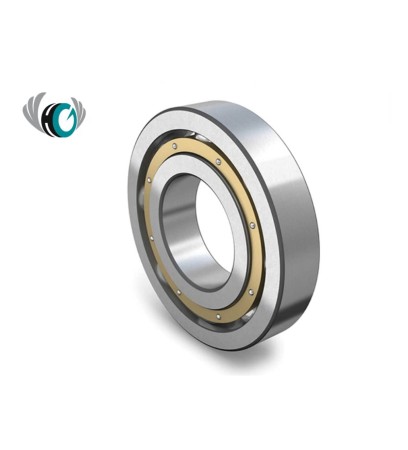

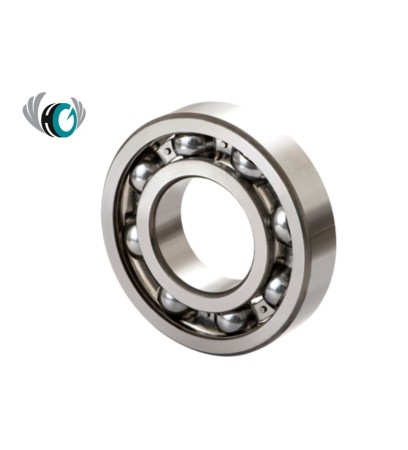

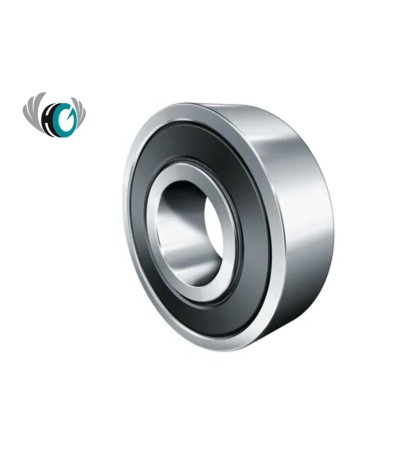

Precision Deep Groove Ball Bearings are designed for smooth running, low friction, and dependable performance in a wide range of precision and industrial applications. According to the product document, this category includes metric series bearings, inch series bearings, metric flanged outer ring bearings, and inch flanged outer ring bearings, with available precision grades of P5, P4, and P2.

These bearings are suitable for applications that require compact structure, stable rotation, and consistent running accuracy. Deep groove ball bearings primarily support radial loads, while also accommodating certain axial loads in both directions. Their simple structure, broad dimensional range, and versatile configurations make them an excellent solution for electric motors, instruments, automation equipment, compact machinery, and OEM replacement needs.

For customers who require easier housing positioning and installation, the flanged outer ring series provides a practical option without sacrificing precision or operating stability. The combination of standard metric models, inch-size options, and flange designs allows greater flexibility for both international replacement markets and customized equipment projects.

With multiple series structures and precision classes, our deep groove ball bearings are well suited for customers seeking a balance of speed capability, reliability, dimensional accuracy, and cost efficiency. Whether your application requires miniature bearings, compact inch-series bearings, or flanged mounting solutions, we can support a wide range of specifications based on your technical requirements.

Metric series bearing

Bore diameter from 3mm to 8mm

Accuracy class:P5,P4,P2

Basik Specriztions	Dimensions(mm)						Basicload rating(N)				Average quality
							Radial			Static Axial
							Dynamic		Static
	d	D	B	d1	D1	' r	Cioors	Ciona₂ess	Co	Cax	9
AX3	3	7	2	4.25	5.75	0.15	256	205	93	45	0.34
X3	3	8	2.5	4.6	6.4	0.15	325	260	113	58	0.59
619/3	3	8	3	4.35	6.55	0.15	484	387	155	96	0.64
623	3	10	4	5.15	7.55	0.15	500	400	156	111	1.58
AX4	4	9	2.5	5.2	7.48	0.15	547	438	192	152	0.7
X4	4	10	3	5.95	8.35	0.15	550	440	201	112	1.06
AY4	4	11	A	5.9	9	0.15	735	588	252	111	1.69
604	4	12	4	6.45	9.55	0.2	821	657	303	130	2.18
624	4	13	5	6.6	10.4	0.2	921	737	289	151	3.11
634	4	16	5	8.3	12.7	0.3	1150	921	414	243	5.4
X5	5	11	3	6.8	9.2	0.15	648	518	269	145	1.22
AY5	5	13	4	7.65	10.75	0.2	902	712	365	149	2.47
625	5	16	5	8.3	12.7	0.3	1150	921	414	243	4.99
635	5	19	6	10	15	0.3	1920	1530	773	378	8.98
X6	6	12	3	7.8	10.2	0.15	640	512	278	146	1.36
AX6	6	13	3.5	7.9	11.1	0.15	901	721	369	108	1.88
AY6	6	15	5	8.6	12.4	0.2	1250	1000	518	204	3.89
626	6	19	6	10	15	0.3	1920	1530	773	378	8.38
AX7	7	14	3.5	8.9	12.1	0.15	968	774	428	122	2.04
X7	7	14	4	8.9	12.1	0.15	968	774	428	122	2.32
628/7	7	14	5	8.9	12.1	0.15	968	774	428	122	2.77
AY7	7	17	5	9.8	14.2	0.3	1510	1210	614	245	4.9
607	7	19	6	10.5	15.5	0.3	1920	1540	786	379	7.72
627	7	22	7	11.5	17.9	0.3	2850	2280	1170	487	13
XB	B	16	4	10.1	13.9	0.2	1350	1080	610	232	3.09
63B/8	B	16	6	10.1	13.9	0.2	1350	1080	610	232	4.31
AY8	8	19	6	11.1	16.1	0.3	1930	1540	800	380	7.05
608	8	22	7	11.5	17.9	0.3	2850	2280	1170	487	12.1

Metric series bearing

Inner diameterdfrom 9mm to 17mm

Precision grades:P5、P4、P2

Specication	Dimension(mm)						Basic Load Rating(N)				Weight
							Radial			Static Axial
							Dynamic		Static
	d	D	B	d1	D1	' r	Cioc9	Cio2esau	Co	Cax	9
X9	9	17	4	11.1	14.9	0.2	1440	1150	693	259	3.35
AY9	9	20	6	12	17	0.3	2110	1690	937	436	7.63
609	9	24	7	13.7	19.9	0.3	2890	2310	1240	604	14.5
629	9	26	8	14	21.1	0.6	3950	3160	1690	1380	18.8
X10	10	19	5	12.6	16.4	0.3	1510	1210	784	286	5.4
63800	10	19	7	12.6	16.4	0.3	1510	1210	784	286	8.43
AY10	10	22	6	13.05	18.05	0.3	2110	1690	959	438	9.72
6000	10	26	8	14	21.1	0.3	3950	3160	1690	1380	19
6200	10	30	9	17.15	22.85	0.6	5810	4640	3230	1820	33
6300	10	35	11	17.7	26.8	0.6	10300	8240	5380	2120	53
61801	12	21	5	15	18.2	0.3	1490	1190	716	818	6.15
AY12	12	24	6	15.5	20.5	0.3	2410	1930	1240	541	10.4
6001	12	28	8	17.15	22.85	0.3	5800	4640	3220	1800	22
6201	12	32	10	18.26	25.7	0.6	7900	6320	4250	2090	37
6301	12	37	12	19.5	29.7	1	11500	9240	5860	3180	58
61802	15	24	5	17.9	21.1	0.3	1610	1290	872	1330	7.26
AY15	15	28	7	18.4	24.6	0.3	3390	2710	1740	842	14.4
6002	15	32	9	20.2	26.7	0.3	6200	4960	3490	1100	30
6202	15	35	11	21.51	29	0.6	8040	6430	4530	3030	44
6302	15	42	13	23.7	33.65	1	13600	10800	7860	3480	83
61803	17	26	5	20.2	23.2	0.3	1730	1390	1020	1080	8.03
AY17	17	30	7	20.4	26.6	0.3	3600	2880	1970	940	15.7
Y17	17	32	8	20.4	26.6	0.3	3600	2880	1970	940	24
6003	17	35	10	22.8	29.2	0.3	6550	5240	3800	1430	40
6203	17	40	12	24.5	32.7	0.6	7200	5760	3100	4750	65
6303	17	47	14	26.5	37.6	1	15700	12600	9140	4570	115

Metric series bearing

Innerdiameterd from 20mm to 40mm

Precision grades:P5、P4、P2

Specication	Dimension(mm)						BasicLoad Rating(N)				Weight
							Radial			Static Axial
							Dynamic		Static
	d	D	B	d1	D1	' r	Coas	Ciowzerts	Co	Cax	9
61804	20	32	7	24	28.25	0.3	2720	2170	1550	1350	18
AY20	20	37	9	25.55	31.35	0.3	6750	5400	3910	2220	38
6004	20	42	12	27.2	34.8	0.6	10400	8340	6240	3650	68
6204	20	47	14	28.5	38.45	1	14900	11900	9010	3960	105
6304	20	52	15	30.3	42.1	1	18500	14800	11000	6490	145
AY22	22	39	9	27.3	34	0.3	7170	5730	4500	526	40
Y22	22	40	9	27.3	34	0.3	7170	5730	4500	526	45
AY25	25	42	9	30.3	36.7	0.3	6990	5590	4330	1620	45
6005	25	47	12	32	40.3	0.6	11600	9310	7400	3730	77
6205	25	52	15	34.04	43.95	1	15200	12100	9410	4940	130
6305	25	62	17	36.6	50.9	1	24500	19600	15200	7850	225
AY28	28	45	9	33.35	40	0.3	7830	6260	5910	782	48
AY30	30	47	9	35.3	42	0.3	8140	6510	6420	825	50
6006	30	55	13	38.2	46.8	1	9250	7400	4680	7630	115
6206	30	62	16	40.36	51.55	1	15400	12300	7840	13600	200
6306	30	72	19	43.2	59.5	1	31200	24900	20200	10700	335
AY32	32	52	10	38	46	0.6	9360	7480	6820	1970	70
AY35	35	55	10	41	49	0.6	9720	7780	7440	2130	75
6007	35	62	14	43.75	53.25	1	13200	10500	7980	12900	150
6207	35	72	17	46.9	60.6	1	27100	21700	17800	9650	275
6307	35	80	21	49.5	66.1	1.5	28700	23000	16600	28300	450
AY40	40	62	12	47.7	54.5	0.6	14500	11600	12400	4620	112
6008	40	68	15	49.25	58.75	1	13900	11100	9470	17000	190
6208	40	80	18	52.6	67.9	1	32600	26000	21900	9410	350
6308	40	90	23	55.2	75.5	1.5	46700	37400	31900	16600	600

Inner diameter from 0.1562inches (3.967mm) to 0.5inches (12.7mm)

2.inch series bearing

Precision grades:P5、P4、P2

5pecieien	Dimension (in./mm)						Basic Load Rating(N)				Weight
							Radial			Static Axial
							Dynamic		Static
	d	D	B	d1	D1	' r	Ciacrt65	Cuo2ctawa	Co	Cax	g
X5/32	0.1562	0.3125	0.1094	0.2197	0.2795	0.004	206	165	65	106	0.63
	3.9675	7.9375	2.779	5.58	7.1	0.1
AX3/16	0.1875	0.3125	0.1094	0.2197	0.2795	0.004	206	165	65	106	0.47
	4.7625	7.9375	2.779	5.58	7.1	0.1
X3/16	0.1875	0.375	0.125	0.2343	0.3287	0.005	445	356	133	193	0.78
	4.7625	9.525	3.175	5.95	8.35	0.125
Y3/16	0.1875	0.5	0.1562	0.2697	0.4154	0.012	821	657	242	323	2.69
	4.7625	12.7	3.967	6.85	10.55	0.3
R3	0.1875	0.5	0.1562	0.2717	0.4075	0.012	821	657	242	323	2.69
	4.7625	12.7	3.967	6.9	10.35	0.3
X1/4	0.25	0.375	0.125	0.2835	0.3425	0.005	229	183	83	136	0.58
	6.35	9.525	3.175	7.2	8.7	0.125
R188	0.25	0.5	0.125	0.311	0.437	0.005	669	535	213	297	2.08
	6.35	12.7	3.175	7.9	11.1	0.125
Y1/4	0.25	0.625	0.196	0.3622	0.5118	0.012	929	743	305	416	4.43
	6.35	15.875	4.978	9.2	13	0.3
R4	0.25	0.625	0.196	0.374	0.5	0.012	1270	1020	527	592	4.43
	6.35	15.875	4.978	9.5	12.7	0.3
R4A	0.25	0.75	0.2188	0.3937	0.5906	0.016	1400	1120	445	578	9.58
	6.35	19.05	5.55B	10	15	0.4
SP5407	0.3125	0.5	0.1562	0.3622	0.4429	0.005	547	438	203	302	1.7
	7.937	12.7	3.967	9.2	11.25	0.125
Y3/8	0.375	0.875	0.2188	0.5	0.748	0.016	2100	1680	701	892	9.36
	9.525	22.225	5.557	12.7	19	0.4
R8	0.5	1.125	0.25	0.6752	0.8996	0.016	6320	5050	3220	1350	22.5
	12.7	28.575	6.35	17.15	22.85	0.4

Metric series flange outer ring bearing

Inner diameterd from 3mm to 6mm

Precision grades:P5、P4、P2

Spcificacien	Dimension(mm)						Basic Load Rating(N)				Weight
							Radial			Static Axial
							Dynamic		Static
	d	D	D1	B	C1	r	Ciacr15	Ciuo2c-taa	Co	Cax	9
FAX3	3	7	8.1	2	0.5	0.15	256	205	93	45	0.39
FX3	3	8	9.5	3	0.7	0.15	325	260	113	58	0.7
F623	3	10	11.5	4	1	0.15	500	400	156	111	1.77
FAX4	4	9	10.3	2.5	0.6	0.15	547	438	192	152	0.79
FX4	4	10	11.5	3	0.8	0.15	550	440	201	112	1.17
FAY4	4	11	12.5	4	1	0.15	735	588	252	111	1.91
F624	4	13	15	5	1	0.2	921	737	289	151	3.45
F634	4	16	18	5	1	0.3	1150	921	414	243	5.77
FX5	5	11	12.5	3	0.8	0.15	648	518	269	145	1.35
FAY5	5	13	15	4	1	0.2	902	712	365	149	2.81
F625	5	16	18	5	1	0.3	1150	921	414	243	5.24
F635	5	19	22	6	1.5	0.3	1920	1530	773	378	10.2
FAX6	6	13	15	3.5	1	0.15	901	721	369	108	2.22
FAY6	6	15	17	5	1.2	0.2	1250	1000	518	204	4.36
F626	6	19	22	6	1.5	0.3	1920	1530	773	378	9.51
FAX7	7	14	16	3.5	1	0.15	968	774	428	122	2.41
FAY7	1	17	19	5	1.2	0.3	1510	1210	614	245	5.43
F607	7	19	22	6	1.5	0.3	1920	1540	786	379	8.85
F627	7	22	25	7	1.5	0.3	2850	2280	1170	487	14.3
FX8	8	16	18	4	1	0.2	1350	1080	610	232	3.36
FAY8	8	19	22	6	1.5	0.3	1930	1540	800	380	8.18
F608	8	22	25	7	1.5	0.3	2850	2280	1170	487	13.4
FX9	9	17	19	4	1	0.2	1440	1150	693	259	3.79
FAY9	9	20	23	6	1.5	0.3	2110	1690	937	436	8.82
F609	9	24	27	7	1.5	0.3	2890	2310	1240	604	15.9
F629	9	26	28	8	2	0.6	3950	3160	1690	1380	20.2
FX10	10	19	21	5	1	0.3	1510	1210	784	286	5.89

Metric series flange outer ring bearing

Inner diameterd from 0.125 inch (3.175mm) to 0.5inch (12.7mm)

Precision grades:P5、P4、P2

5pecicatis	Dimension (in./mm)						Basic Load Rating(N)				Weight
							Radial			Static Axial
							Dynamic		Static
	d	D	D1	B	C1	r	Ciocn	Cosracentu	Co	Cax	9
FAX1/8	0.125	0.25	0.296	0.0937	0.023	0.004	192	154	53	86	0.36
	3.175	6.35	7.518	2.38	0.584	0.1
FX1/8	0.125	0.3125	0.359	0.1094	0.023	0.005	351	281	89	127	0.75
	3.175	7.9375	9.119	2.779	0.584	0.125
FR2	0.125	0.375	0.44	0.1562	0.03	0.012	401	321	111	160	1.32
	3.175	9.525	11.176	3.967	0.762	0.3
FX5/32	0.1562	0.3125	0.359	0.1094	0.023	0.004	206	165	65	106	0.7
	3.9675	7.9375	9.119	2.779	0.584	0.1
FAX3/16	0.1875	0.3125	0.359	0.1094	0.023	0.004	206	165	65	106	0.54
	4.7625	7.9375	9.119	2.779	0.584	0.1
FX3/16	0.1875	0.375	0.422	0.125	0.023	0.005	445	356	133	193	0.87
	4.7625	9.525	10.719	3.175	0.584	0.125
FY3/16	0.1875	0.5	0.565	0.196	0.042	0.012	821	657	242	323	2.96
	4.7625	12.7	14.351	4.978	1.067	0.3
FX1/4	0.25	0.375	0.422	0.125	0.023	0.005	229	183	83	136	0.65
	6.35	9.525	10.719	3.175	0.584	0.125
FR188	0.25	0.5	0.547	0.125	0.023	0.005	669	535	213	297	2.19
	6.35	12.7	13.894	3.175	0.584	0.125
FY1/4	0.25	0.625	0.69	0.196	0.042	0.012	929	743	305	416	4.79
	6.35	15.875	17.526	4.978	1.067	0.3
FSP5407	0.3125	0.5	0.547	0.1562	0.031	0.005	547	438	203	302	1.85
	7.937	12.7	13.894	3.967	0.787	0.125
FY3/8	0.3750	0.875	0.969	0.2812	0.062	0.016	2100	1680	701	892	11.7
	9.525	22.225	24.612	7.142	1.575	0.4
FRB	0.5	1.125	1.225	0.25	0.062	0.016	6320	5050	3220	1350	24
	12.7	28.575	31.115	6.35	1.575	0.4
