Triple Row Roller Slewing Bearings

Type: External gear, Internal gear, No gear

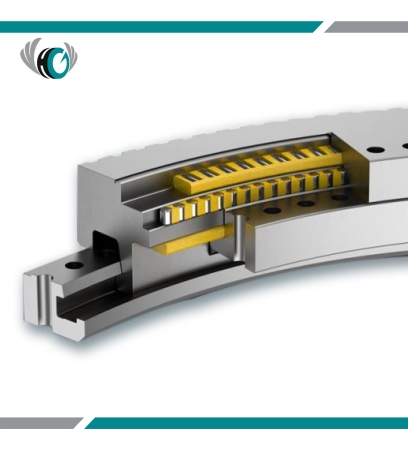

Feature: The Triple-row Roller Slewing Bearing has three seating rings, which separate the upper, lower and radial raceways. It can specify the loads of each row of rollers. Moreover, its load carrying capacity and it can bear different loads simultaneously. The solid structure and the large axial and radial dimensions.
Application: It is applicable to the heavy equipment with large diameter such as bucket-wheel excavator, wheeled crane, ship crane, harbor crane, ladle turrets and heavy-duty mobile crane, etc.
Material: 50Mn/42CrMo/S48C/42CrMo4/16Mn

Email: info@hgtbearing.com

Description
Specification

Triple row roller slewing bearings are specifically designed for extremely heavy-duty applications requiring exceptional load capacity and maximum structural stability. Featuring three separate rows of rollers—dedicated to carrying axial loads, radial loads, and overturning moments respectively—this bearing design ensures optimal load distribution and superior performance under complex working conditions.

The separated load paths significantly reduce internal stress and enhance rigidity, allowing the bearing to withstand very high axial forces, radial loads, and tilting moments simultaneously. Compared with ball-type and cross roller slewing bearings, triple row roller slewing bearings offer the highest load-carrying capacity and outstanding resistance to shock, vibration, and deformation.

Manufactured from high-quality bearing steel with precision-machined raceways, these bearings deliver smooth rotation, low wear, and long service life even in harsh environments. Triple row roller slewing bearings are widely used in large cranes, ship deck machinery, bucket wheel excavators, stackers and reclaimers, offshore equipment, and heavy material-handling systems.

Available with internal or external gears and customizable dimensions, triple row roller slewing bearings provide reliable, long-term performance for large rotating structures operating under extreme loads.

Technical Specifications

Specification	Details
Bearing Type	Triple Row Roller Slewing Bearing
Load Capacity	High load capacity
Material	High-strength steel
Precision	High precision
Corrosion Resistance	Enhanced corrosion resistance
Temperature Range	Wide temperature range
Customization	Available based on requirements

Internal gear

Bearing Model	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					weight (kg)
	Dmm	dmm	Hmm	D1mm	D2mm	n	omm	dmmm	Lmm	n1	D3mm	d1mm	H1mm	hmm	bmm	x	Mmm	Demm	z
133.25.500	634	366	148	598	402	24	18	M16	32	474	463	4	0	32	80	0.5	5	337	68	224
134.25.500																	6	338.4	57
133.25.560	694	426	148	658	462	24	18	M16	32	534	523	1	10	32	80	0.5	5	397	80	240
134.25.560																	6	398.4	67
133.25.630	764	496	148	728	532	28	18	M16	32	604	593	4	10	32	80	0.5	6	458.4	77	270
134.25.630																	8	459.2	58
133.25.710	844	576	148	808	612	28	18	M16	32	684	673	4	10	32	80	0.5	6	536.4	90	300
134.25.710																	8	539.2	68
133.32.800	964	636	182	920	680	36	22	M20	40	770	759	4	10	40	120	0.5	8	595.2	75	500
134.32.800																	10	594	60
133.32.900	1064	736	182	1020	780	36	22	M20	40	870	859	4	10	40	120	0.5	8	691.2	87	600
134.32.900																	10	60	70
133.32.100	1164	836	182	1120	880	40	22	M20	40	970	959	5	10	40	120	0.5	10	784	79	680
134.32.100																	12	784.8	66
133.32.112	1284	956	182	1240	1000	40	22	M20	40	1090	1079	5	10	40	120	0.5	10	904	91	820
134.32.112																	12	904	76
133.40.125	1445	1055	220	1393	1107	45	26	M24	48	1213	100	5	10	50	150	0.5	12	988.8	83	1200
134.40.125																	14	985.6	71
133.40.140	1595	1205	220	1543	1257	45	26	M24	48	1363	1350	5	10	50	150	0.5	12	1145	96	1300
134.40.140																	14	1410	82
133.40.160	1795	1405	220	1743	1457	48	26	M24	48	1563	1550	6	10	50	150	0.5	14	1336	96	1520
134.40.160																	16	1334	84
133.40.180	1995	1605	220	1943	1657	48	26	M24	48	1763	1750	6	10	50	150	0.5	14	1532	110	1750
134.40.180																	16	1526	96
133.45.200	2221	1779	231	2155	1845	60	33	M30	60	1967	1945	6	12	54	160	0.5	16	1702	107	2400
134.45.200																	18	1699	95
133.45.224	2461	2019	231	2395	2085	60	33	M30	60	2207	2185	6	12	54	160	0.5	16	1926	121	2700
134.45.224																	18	1933	108
133.45.250	2721	2279	231	2655	2345	72	33	M30	60	2467	2445	8	12	54	160	0.5	18	2185	12	3000
134.45.250																	20	2188	110
133.45.280	3021	2579	231	2955	2645	72	33	M30	60	2767	2745	8	12	54	160	0.5	18	2491	139	3400
134.45.280																	20	2488	125
133.50.315	3432	2868	270	3342	2958	72	45	M42	84	3104	3090	8	12	65	180	0.5	20	2768	139	5000
134.50.315																	22	2759	126
131.50.355	3832	3268	270	3742	3358	72	45	M42	84	3504	3490	8	258	65	180	0.5	20	3168	159	5680
132.50.355																	22	3155	144
131.50.400	4282	3718	270	4192	3808	80	45	M42	84	3954	3940	8	258	65	180	0.5	22	311	165	6470
132.50.400																	25	3610	145
131.50.450	4782	4218	270	4692	4308	80	45	M42	84	4454	4440	8	258	65	180	0.5	22	4123	188	7320
132.50.450																	25	4110	165

No gear

Bearing Model	Dimensions			Mounting Dimensions						Structural Dimension					weight (kg)
Bearing Model	Dmm	dmm	Hmm	D1mm	D2mm	n	mm	dmmm	Lmm	nl	D3mm	d1mm	H1mm	hmm	weight (kg)
130.25.500	634	366	148	598	402	24	18	M16	32	474	463	4	10	32	224
130.25.560	694	426	148	658	462	24	18	M16	32	534	523	4	10	32	240
130.25.630	764	496	148	728	532	28	18	M16	32	604	593	4	10	32	270
130.25.710	844	576	148	808	612	28	18	M16	32	684	673	4	10	32	300
130.32.800	964	636	182	920	680	36	22	M20	40	770	759	4	10	40	500
130.32.900	1064	736	182	1020	780	36	22	M20	40	870	859	4	10	40	600
130.32.1000	1164	836	182	1120	880	40	22	M20	40	970	959	5	10	40	680
130.32.1120	1284	956	182	1240	1000	40	22	M20	40	1090	1079	5	10	40	820
130.40.1250	1445	1055	220	1393	1107	45	26	M24	48	1213	1200	5	10	50	1200
130.40.1400	1595	1205	220	1543	1257	45	26	M24	48	1363	1350	5	10	50	1300
130.40.1600	1795	1405	220	1743	1457	48	26	M24	48	1563	1550	6	10	50	1520
130.40.1800	1995	1605	220	1943	1657	48	26	M24	48	1763	1750	6	10	50	1750
130.45.2000	2221	1779	231	2155	1845	60	33	M30	60	1967	1945	6	12	54	2400
130.45.2240	2461	2019	231	2395	2085	60	33	M3O	60	2207	2185	6	12	54	2700
130.45.2500	2721	2279	231	2655	2345	72	33	M30	60	2467	2445	8	12	54	3000
130.45.2800	3021	2579	231	2955	2645	72	33	M30	60	2767	2745	8	12	54	3400
130.50.3150	3432	2868	270	3342	2958	72	45	M42	84	3104	3090	8	12	65	5000
130.50.3550	3832	3268	270	3742	3358	72	45	M42	84	3504	3490	8	258	65	5680
130.05.4000	4282	3718	270	4192	3808	80	45	M42	84	3954	3940	8	258	65	6470
130.50.4500	4782	4218	270	4692	4308	80	45	M42	84	4454	4440	8	258	65	7320

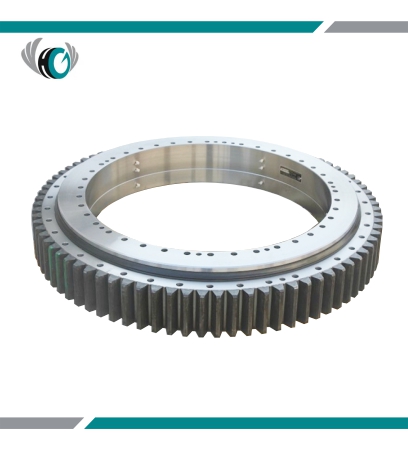

External gear

Bearing Model	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					weight (kg)
	Dmm	dmm	Hmm	D1mm	D2mm	n	omm	dmmm	Lmm	n1	D3mm	d1mm	H1mm	hmm	bmm	x	Mmm	Demm	z
131.25.500	634	366	148	598	402	24	18	M16	32	537	526	4	138	32	80	0.5	5	664	130	224
132.25.500																	6	664.8	108
131.25.560	694	426	148	658	462	24	18	M16	32	597	586	4	138	32	80	0.5	5	724	142	240
132.25.560																	6	724.8	118
131.25.630	764	496	148	728	532	28	18	M16	32	667	656	4	138	32	80	0.5	6	808.8	132	270
132.25.630																	8	806.4	98
131.25.710	844	576	148	808	612	28	18	M16	32	747	736	4	138	32	80	0.5	6	886.8	145	300
132.25.710																	8	886.4	108
131.32.800	964	636	182	920	680	36	22	M20	40	841	830	4	172	40	120	0.5	8	1006.4	123	500
132.32.800																	10	1008	98
131.32.900	1064	736	182	1020	780	36	22	M20	40	941	930	4	172	40	120	0.5	8	1102.4	135	600
132.32.900																	10	1108	108
131.32.1000	1164	836	182	1120	880	40	22	M20	40	1041	1030	5	172	40	120	0.5	10	1218	119	680
132.32.1000																	12	1221.6	99
131.32.1120	1284	956	182	1240	1000	40	22	M20	40	1161	1150	5	172	40	120	0.5	10	1338	131	820
132.32.1120																	12	1341.6	109
131.40.1250	1445	1055	220	1393	1107	45	26	M24	48	1300	1287	5	210	50	150	0.5	12	150.6	123	1200
132.40.1250																	14	1509.2	105
131.40.1400	1595	1205	220	1543	1257	45	26	M24	48	1450	1437	5	210	50	150	0.5	12	1665.6	136	1300
132.40.1400																	14	1663.2	116
131.40.1600	1795	1405	220	1743	1457	48	26	M24	48	1650	1637	6	210	50	150	0.5	14	1873.2	131	1520
132.40.1600																	16	1868.8	114
131.40 1800	1995	1605	220	1943	1657	48	26	M24	48	1850	1837	6	210	50	150	0.5	14	2069.2	145	1750
132.40.1800																	16	2076.8	127
131.45.2000	2221	1779	231	2155	1845	60	33	M30	60	2055	2033	6	219	54	160	0.5	16	2300.8	141	2400
132.45.2000																	18	2300.4	125
131.45.2240	2461	2019	231	2395	2085	60	33	M30	60	2295	2273	6	219	54	160	0.5	16	2556.8	157	2700
132.45.2240																	18	2552.4	139
131.45.2500	2721	2279	231	2655	2345	72	33	M30	60	2555	2533	8	219	54	160	0.5	18	2822.4	154	3000
132.45.2500																	20	2816	138
131.45.2800	3021	2579	231	2955	2645	72	33	M30	60	2855	2833	8	219	54	160	0.5	18	3110.4	170	3400
132.45.2800																	20	3116	153
131.50.3150	3432	2868	270	3342	2958	72	45	M42	84	3213	3196	8	258	65	180	0.5	20	3536	174	50000
132.50.3150																	22	3537.6	158
131.50.3550	3832	3268	270	3742	3358	72	45	M42	84	3613	3596	8	258	65	180	0.5	22	3936	194	5680
132.50.3550																	22	393.6	176
131.50.4000	4282	3718	270	4192	3808	80	45	M42	84	4063	4046	8	258	65	180	0.5	22	4395.6	197	6470
132.50.4000																	25	4395	173
131.50.4500	4782	4218	270	4692	4308	80	45	M42	84	4563	4546	8	258	65	180	0.5	22	4901.6	220	7320
132.50.4500																	25	4895	193
